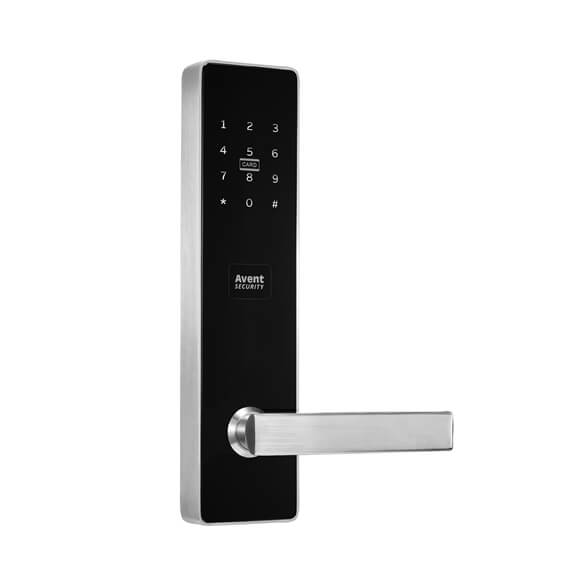

• D800 SS SIDE
  • D800 SS FRONT 1

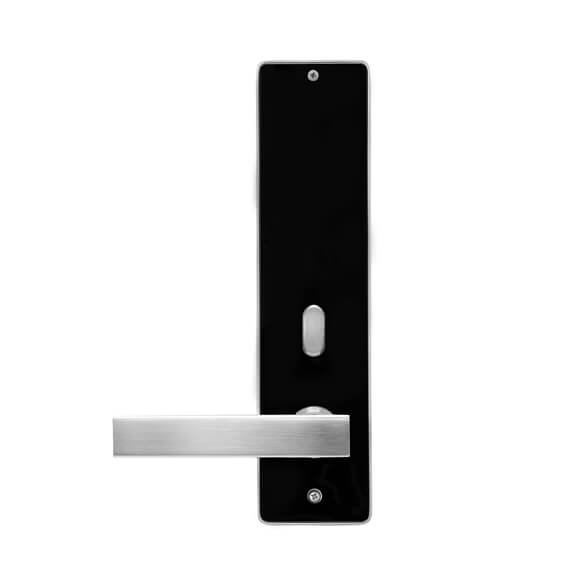

  • D800 SS BACK

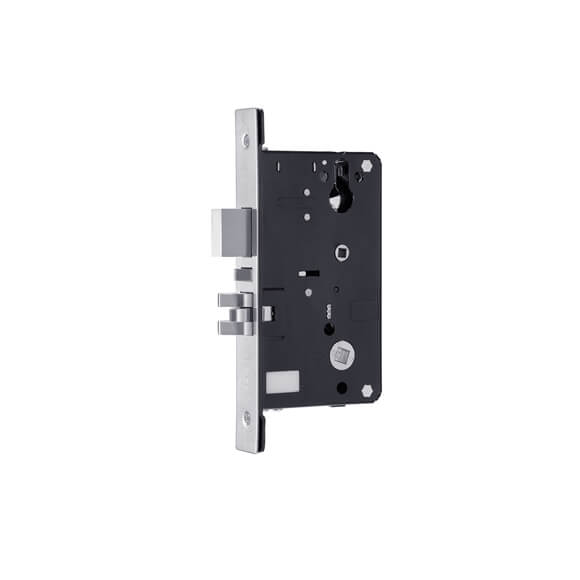

  • D800 Mortise
  • D800 SS SIDE
  • D800 SS FRONT 1
  • D800 SS BACK
  • D800 Mortise

Password Door Lock D800

  • Home and Office Application
  • Asia and Middle East Style


  • Password, RF Card Unlocking
  • Up to 300 Different Users
  • Grade 304 Stainless Steel
  • US Standard Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Single/Double Unlocking Mode
  • Micro-USB for Backup Power Supply
  • Wi-Fi Connection (optional)


Touch Screen Keypad

The lock is using a high quality touch screen keyboard that help you input the numbers faster. It also makes the lock look nice and fashionable.

Smart Home Wi-Fi Connection

The lock can work with Tuya Wi-Fi so that it can be one of the part for your smart home solution.

Tech Specs

Model D800
Material Stainless Steel 304, ABS
Finish SS
Mortise Center Distance: 94mm; Backset: 62mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AA battery x 4)
Battery Life Time 5,000~6,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Password 6 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi Tuya Wi-Fi – Model: D800 Wi-Fi
Mechanical Key 3 Keys
User Capacity 300 (PW/CARD)
Ouside Plate Dimention 70.5x288x26.5 mm
Inside Plate Dimention 70.5x288x26.5 mm
