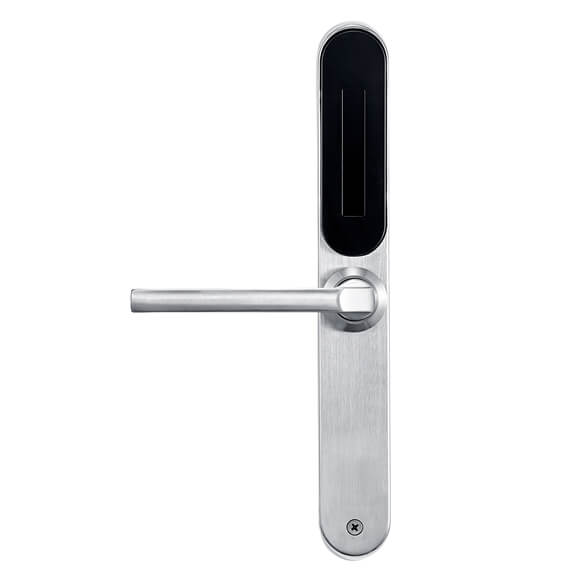

  • D201 SS BACK
  • 3585 Mortise
  • D201 SS SIDE
  • D201 SS FRONT
  • D201 SS BACK
  • 3585 Mortise

Password Door Lock D201

  • Home and Office Application
  • Euro Style


  • Password, RF Card Unlocking
  • Up to 900 Different Users
  • Grade 304 Stainless Steel
  • 35-85mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Micro-USB for Backup Power Supply
  • Voice Indicator
  • Reversible Handle
  • APP Management (D201W)


Available to Different Size of Door Frame

There are different kinds of mortises available, like 2885 swing/sliding, 3585 swing/sliding, 4585 swing, and 6085 swing.

APP Management

The lock can work with TTLock App which helps you to manage the users easily.

Tech Specs

Model D201
Material Stainless Steel 304, ABS
Finish SS/BK
Mortise Center Distance: 85mm; Backset: 35mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AAA battery x 4)
Battery Life Time 5,000~6,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Password 6~10 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi BLE 4.0 (TTLock) – Model: D201W
Mechanical Key 2 Keys
User Capacity 100 (PW)+800 (CARD)
Ouside Plate Dimention 40x300x22 mm
Inside Plate Dimention 40x300x22 mm
