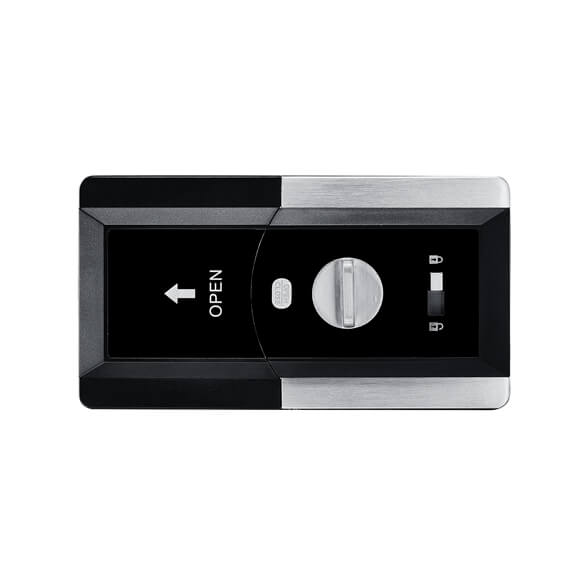

  • D401W SS BACK
  • D400W SS SIDE
  • D400W SS FRONT
  • MORTISE M10 6070 AS
  • D401W SS BACK

Password Door Lock D400W

  • Home and Office Application
  • Asia and US Style

Features

  • Password, RF Card, BLE Unlocking
  • Up to 300 Different Users
  • Zinc Alloy Material
  • 60/70mm Backset Adjustable Deadbolt (D400W)
  • Rim Lock Style Mortise (D401W)
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Voice Indicator
  • Auto Lock/Unlock
  • APP Management

    Videos

    Touch Screen Keypad

    The lock is using a high quality touch screen keyboard that help you input the numbers faster. It also makes the lock look nice and fashionable.

    APP Management

    The lock can work with TTLock App which helps you to manage the users easily.

    Tech Specs

    ModelD400W/D401W
    MaterialZinc Alloy, ABS
    FinishSS/BK
    MortiseBackset: 60mm (D400W)
    Applicated Door Thickness40~50mm
    Power6V (Alkaline AA battery x 4)
    Battery Life Time5,000~6,000 times
    Emergency Power PortMicro-USB
    Operating Temperature-15°C~55°C
    Password4~8 Digits
    CardS50 (13.56MHz)
    Bluetooth/Wi-FiBLE 4.0 (TTLock)
    Mechanical Key2 Keys
    User Capacity300 (PW/CARD)+BLE
    Ouside Plate Dimention58x154x24 mm
    Inside Plate Dimention68x154x24 mm
