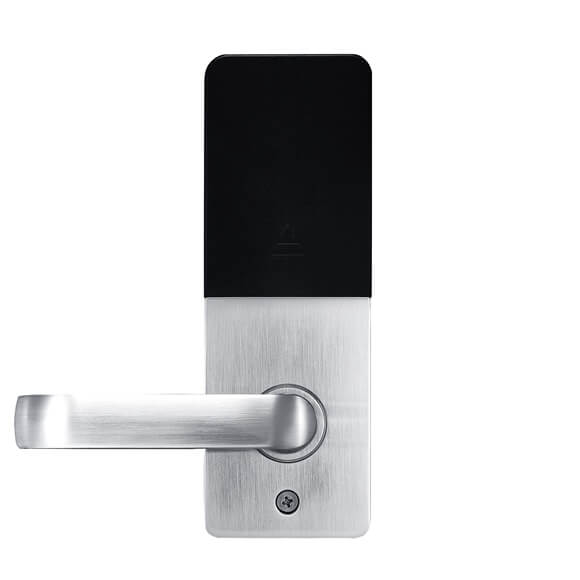

  • D300 SS BACK

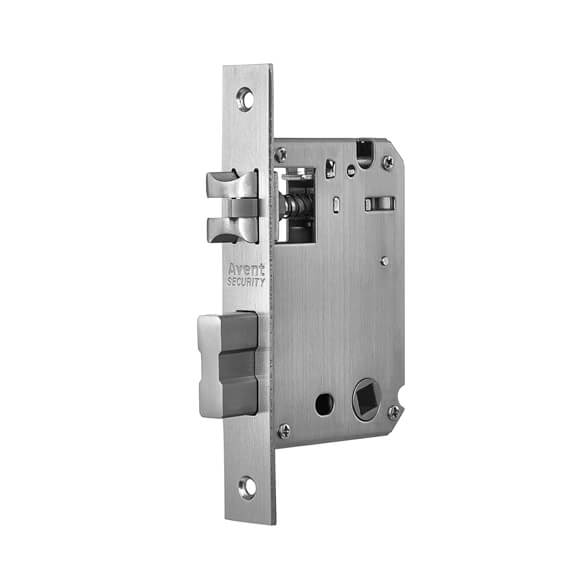

  • 50A Mortise
  • D300 SS SIDE
  • D300 SS FRONT
  • D300 SS BACK
  • 50A Mortise

Password Door Lock D300

  • Home and Office Application
  • Asia Style


  • Password, RF Card Unlocking
  • Up to 130 Different Users
  • Zinc Alloy Material
  • 50mm Backset Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Voice Indicator
  • Single/Double Unlocking Mode


Touch Screen Keypad

The lock is using a high quality touch screen keyboard that help you input the numbers faster. It also makes the lock look nice and fashionable.

Multiple Unlocking Methods

Password, RF Card can be the unlocking methods for daily usage. However, there are mechanical keys for emergency access even the lock has problems.

Tech Specs

Model D300
Material Zinc Alloy, ABS
Finish SS
Mortise Backset: 50mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AA battery x 4)
Battery Life Time 5,000~6,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Password 4~8 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi Not Available
Mechanical Key 2 Keys
User Capacity 30 (PW)+100 (CARD)
Ouside Plate Dimention 70x200x23 mm
Inside Plate Dimention 70x200x23 mm
