• D600W SS FRONT

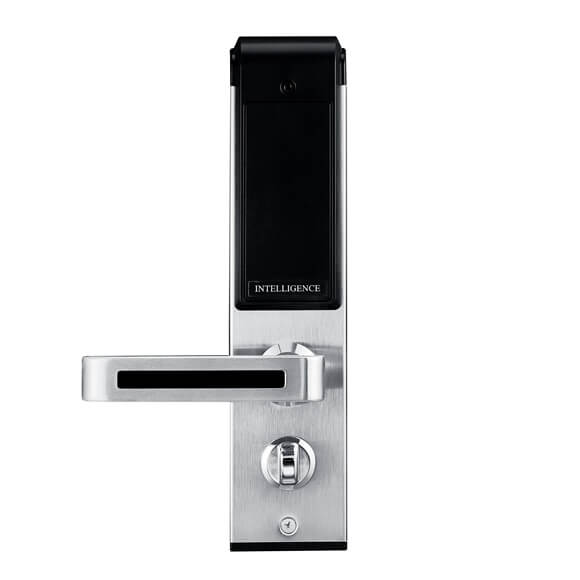

  • D600W SS BACK

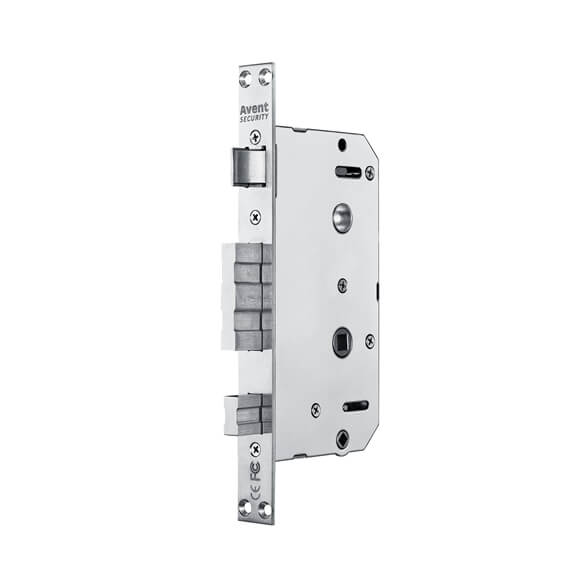

  • 6052 Mortise

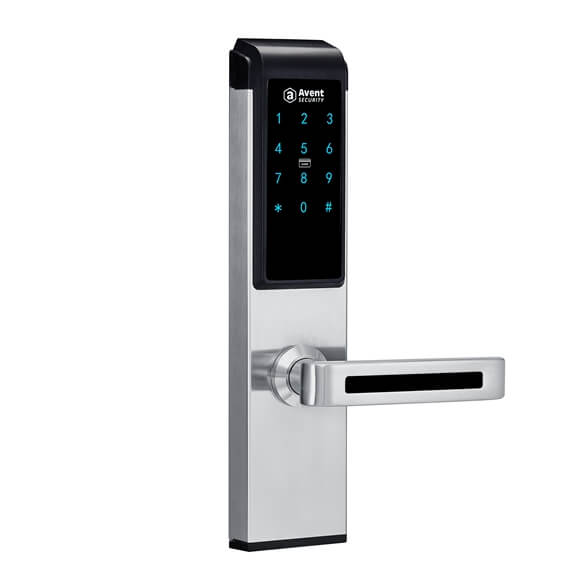

  • D600W SS SIDE
  • D600W SS FRONT
  • D600W SS BACK
  • 6052 Mortise

Password Door Lock D600W

  • Home and Office Application
  • Asia Style


  • Password, RF Card, BLE Unlocking
  • Up to 250 Different Users
  • Grade 304 Stainless Steel
  • 60-68mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Micro-USB for Backup Power Supply
  • Reversible Handle
  • APP Management


    Touch Screen Keypad

    The lock is using a high quality touch screen keyboard that help you input the numbers faster. It also makes the lock look nice and fashionable.

    APP Management

    The lock can work with TTLock App which helps you to manage the users easily.

    Tech Specs

    MaterialStainless Steel 304, ABS
    MortiseCenter Distance: 68mm; Backset: 60mm
    Applicated Door Thickness40~50mm
    Power6V (Alkaline AA battery x 4)
    Battery Life Time5,000~6,000 times
    Emergency Power PortMicro-USB
    Operating Temperature-15°C~55°C
    Password6~10 Digits
    CardS50 (13.56MHz)
    Bluetooth/Wi-FiBLE 4.0 (TTLock)
    Mechanical Key2 Keys
    User Capacity150 (PW)+200 (CARD)+BLE
    Ouside Plate Dimention72x315x24 mm
    Inside Plate Dimention72x315x24 mm
