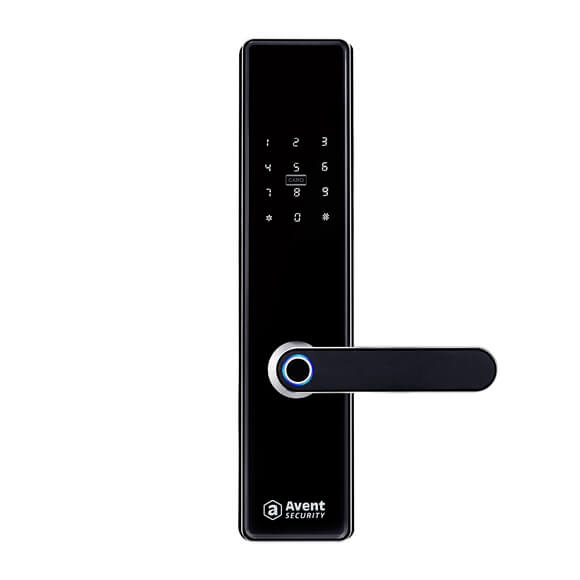

• MX03 BK FRONT 1

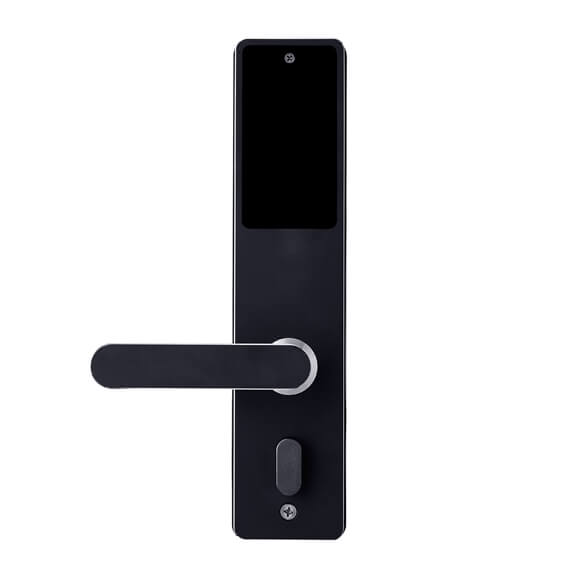

  • MX03 BK BACK
  • 6068 Mortise

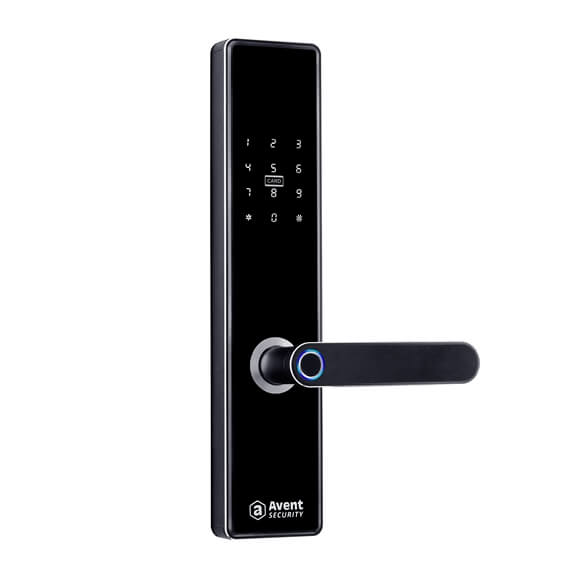

  • MX03 BK SIDE
  • MX03 BK FRONT 1
  • MX03 BK BACK
  • 6068 Mortise

Fingerprint Door Lock MX03

  • Home and Office Application
  • Asia and Middle East Style


  • Fingerprint, Password, RF Card Unlocking
  • Up to 300 Different Users
  • Aluminum Alloy Material
  • 60-68mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Semiconductor Fingerprint Sensor
  • Single/Double Unlocking Mode
  • Available with Bluetooth/Wi-Fi Connection


    The 3rd Generation of Fingerprint Sensor

    Our advanced fingerprint technology uses a scratchproof, dustproof and waterproof semiconductor sensor to make unlocking easy and secure.

    Available with Bluetooth and Wi-Fi Connection

    We work with TTLock (Bluetooth) and Tuya (Wi-Fi) to give the better experience of security to our clients.

    Tech Specs

    MaterialAluminium Alloy, ABS
    MortiseCenter Distance: 52mm; Backset: 60mm
    Applicated Door Thickness40~50mm
    Power6V (Alkaline AA battery x 4)
    Battery Life Time3,000~4,000 times
    Emergency Power PortMicro-USB
    Operating Temperature-15°C~55°C
    Fingerpint SensorSemiconductor Sensor
    Password4~8 Digits
    CardS50 (13.56MHz)
    Bluetooth/Wi-FiBLE 4.0 (TTLock)/Tuya Wi-Fi
    Mechanical Key2 Keys
    User Capacity300 (FP/PW/CARD)
    Ouside Plate Dimention70x320x25 mm
    Inside Plate Dimention70x320x25 mm
