APP Management
The lock can work with TTLock App which helps you to manage the users easily.
The lock can work with TTLock App which helps you to manage the users easily.

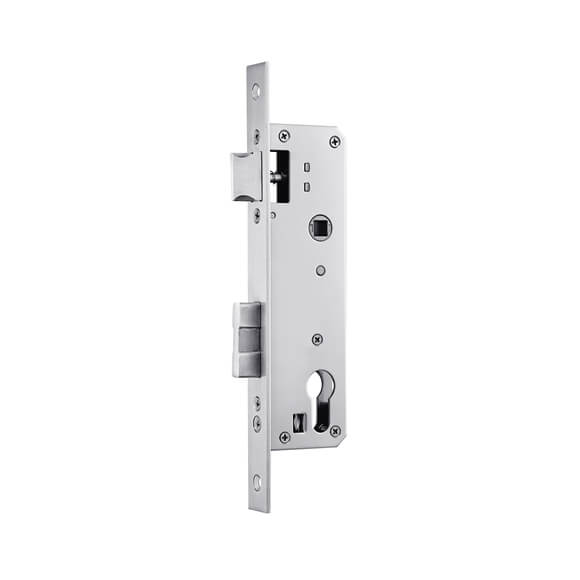

There are different kinds of mortises available, like 2885 swing/sliding, 3585 swing/sliding, 4585 swings, and 6085 swings.
Model | S6 |
Material | Zinc Alloy, ABS |
Finish | SS/BK |
Mortise | Center Distance: 85mm; Backset: 35mm |
Applicated Door Thickness | 40~50mm |
Power | 6V (Alkaline AA battery x 4) |
Battery Life Time | 3,000~4,000 times |
Emergency Power Port | Micro-USB |
Operating Temperature | -15°C~55°C |
Fingerprint Sensor | Semiconductor Sensor |
Password | 6~10 Digits |
Card | S50 (13.56MHz) |
Bluetooth/Wi-Fi | BLE 4.0 (TTLock) |
Mechanical Key | 2 keys |
User Capacity | 100 (FP) + 150 (PW) + 200 (CARD) |
Outside Plate Dimension | 37*320*23 mm |
Inside Plate Dimension | 37*320*23 mm |
We support brand owners, wholesalers and contractors with superior in-stock products and professional OEM services at lower MOQ & prices.
