Smart Home Connection
The lock can work with Tuya Wi-Fi/TTlock Bluetooth to be one of the parts for your innovative home solution.
The lock can work with Tuya Wi-Fi/TTlock Bluetooth to be one of the parts for your innovative home solution.
Our advanced fingerprint technology uses a scratchproof, dustproof and waterproof semiconductor sensor to make unlocking easy and secure.

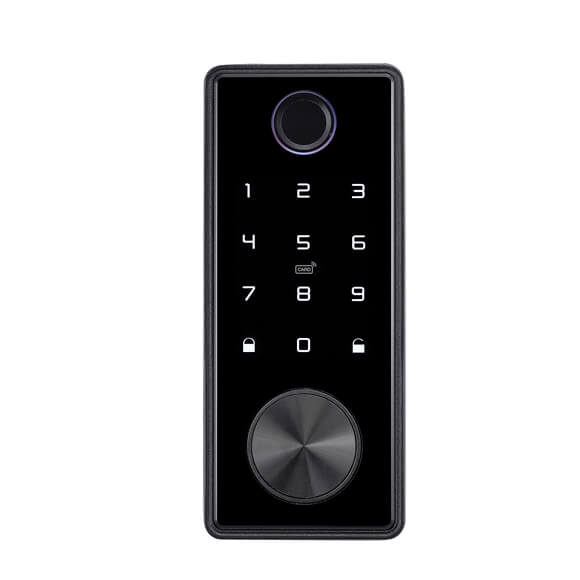

Model | T1 |
Material | Aluminum Alloy, ABS |
Finish | SS/BK |

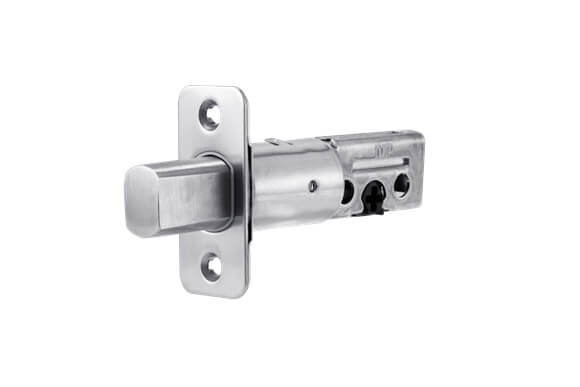

Mortise | Backset: 60mm/70mm |
Applicated Door Thickness | 40~50mm |
Power | 6V (Alkaline AA battery x 4) |
Battery Life Time | 3,000~4,000 times |
Emergency Power Port | Micro-USB |
Operating Temperature | -15°C~55°C |
Fingerprint Sensor | Semiconductor Sensor |
Password | 6~10 Digits |
Card | S50 (13.56MHz) |
Wireless Connection | Bluetooth (TTLock App)/Tuya WiFi |
Mechanical Key | 2 keys |
User Capacity | 100 (FP) + 200 (PW/CARD) |
Exterior Dimension | 60*140*16 mm |

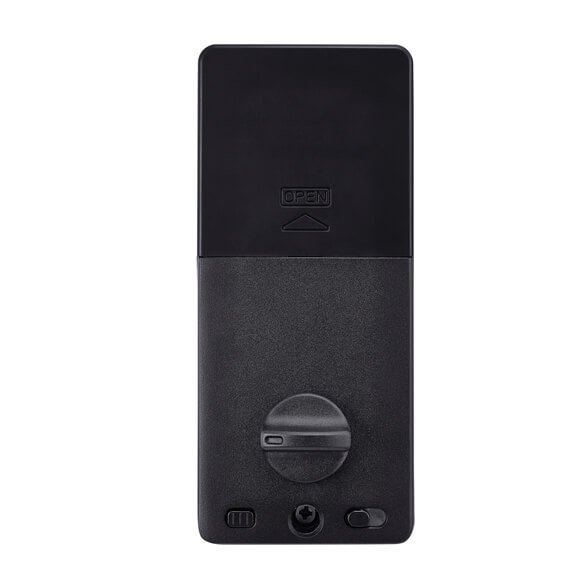

Interior Dimension | 68*155*28 mm |
We support brand owners, wholesalers and contractors with superior in-stock products and professional OEM services at lower MOQ & prices.
