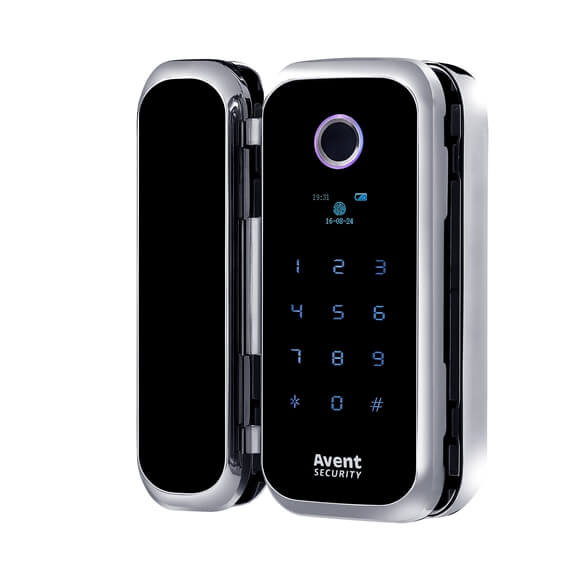

• M901S SS SIDE

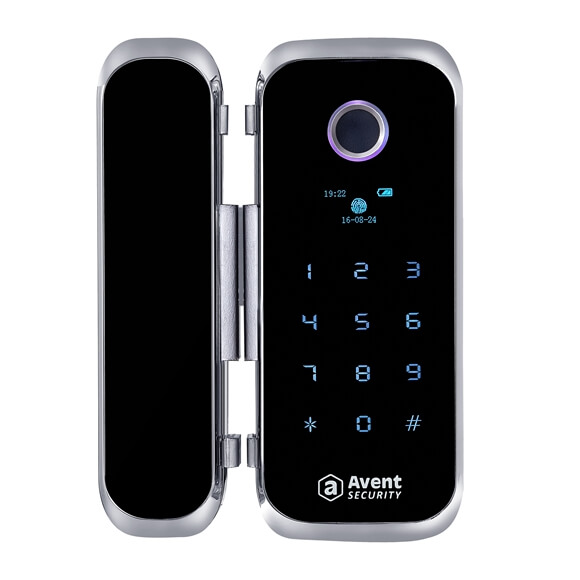

  • M901S SS FRONT

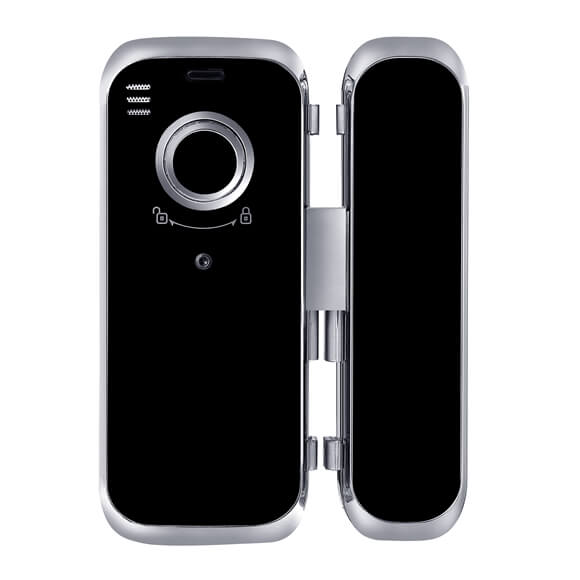

  • M901S SS BACK
  • M901S SS SIDE
  • M901S SS FRONT
  • M901S SS BACK

Fingerprint Door Lock M901S

  • Office Application
  • Universal Style

Features

  • Fingerprint, Password, RF Card Unlocking
  • Up to 300 Different Users
  • Zinc Alloy and ABS material
  • Auto Lock/Unlock
  • Semiconductor Fingerprint Sensor
  • Touch Screen Keypad
  • LCD Display Indicator
  • Voice Indicator
  • Door Bell
  • Remote Controller Available
  • APP Management (M901SW)

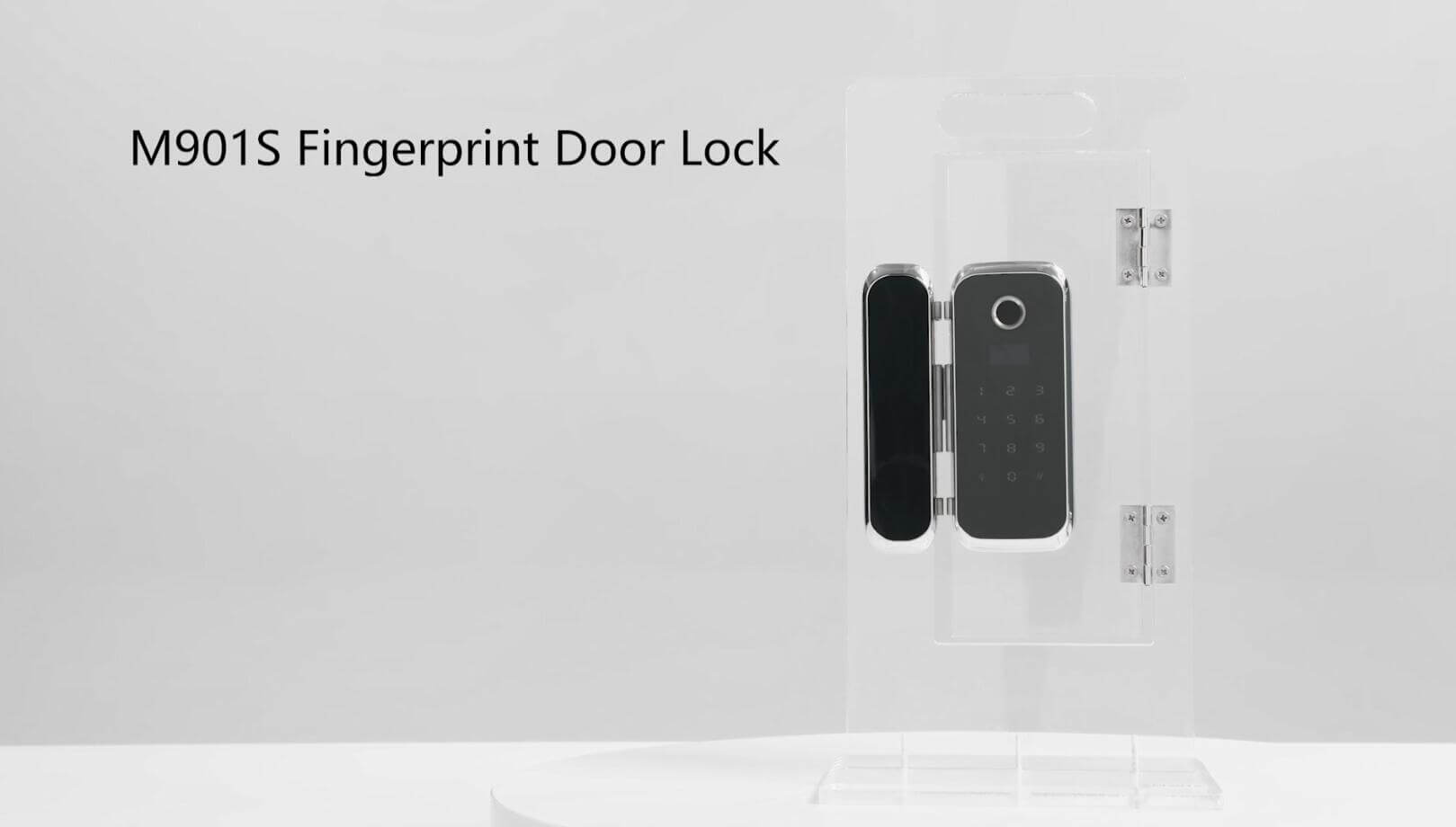

    Videos

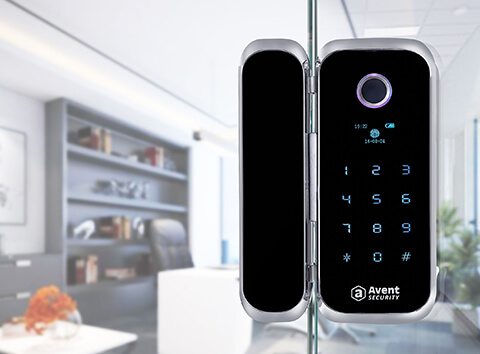

    Best Solution For Glass Door

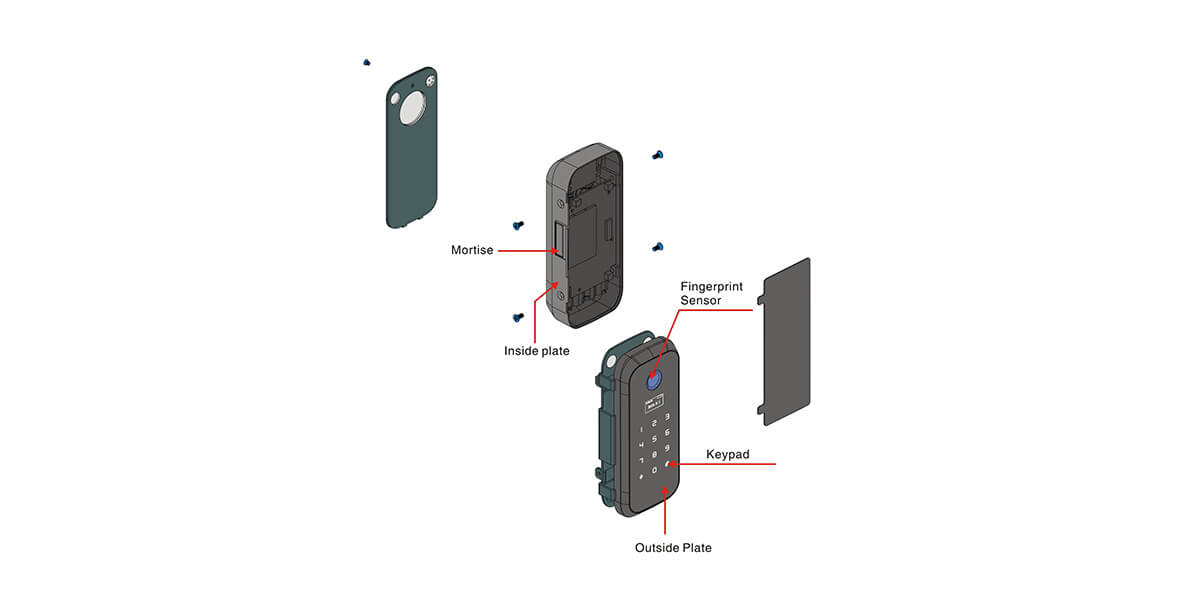

    The application door thickness is 10 to 12mm, which you don't need to drill holes on the glass. Follow the installation guide, you can finish the installation in 5 minutes.

    The 3rd Generation of Fingerprint Sensor

    Our advanced fingerprint technology uses a scratchproof, dustproof and waterproof semiconductor sensor to make unlocking easy and secure.

    Tech Specs

    ModelM901S
    MaterialZinc Alloy, ABS
    FinishSS
    MortiseIntegrated
    Applicated Door Thickness10~12mm Glass Door
    Power6V (Alkaline AA battery x 4)
    Battery Life Time3,000~4,000 times
    Emergency Power PortMicro-USB
    Operating Temperature-15°C~55°C
    Fingerpint SensorSemiconductor Sensor
    Password6-10 Digits
    CardS50 (13.56MHz)
    Bluetooth/Wi-FiBLE 4.0 (TTLock) – Model: M901SW
    Mechanical KeyNot Available
    User Capacity300 (FP/PW/CARD)
    Ouside Plate Dimention72.5x165x13 mm
    Inside Plate Dimention72.5x165x32 mm
