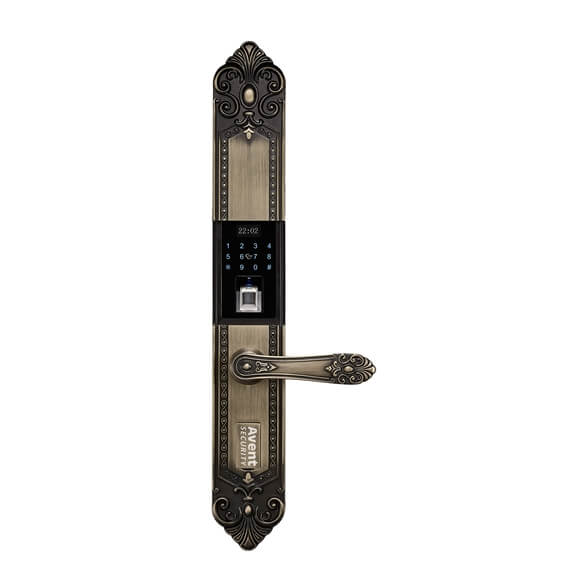

• M800 AB FRONT

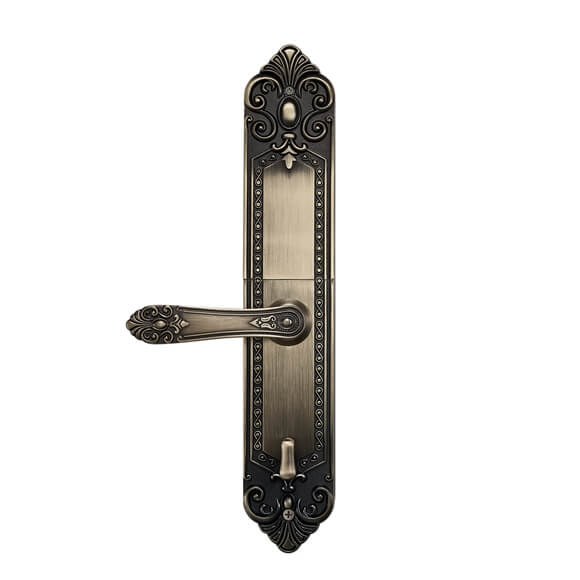

  • M800 AB BACK
  • 6068 Mortise

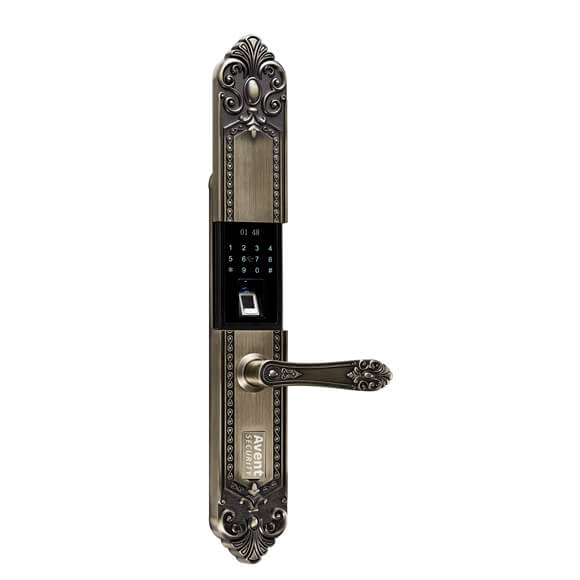

  • M800 AB SIDES
  • M800 AB FRONT
  • M800 AB BACK
  • 6068 Mortise

Fingerprint Door Lock M800

  • Home and Office Application
  • Asia and Middle East Style


  • Fingerprint, Password, RF Card Unlocking
  • Up to 300 Different Users
  • Zinc Alloy Material
  • 60-68mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Semiconductor Fingerprint Sensor
  • Reversible Handle
  • LCD Display Indicator
  • Voice Indicator
  • Single/Double Unlocking Mode


Multiple Unlocking Methods

Fingerprint, Password, RF Card can be the unlocking methods for daily usage. However, there are mechanical keys for emergency access even the lock has problems.

The 3rd Generation of Fingerprint Sensor

Our advanced fingerprint technology uses a scratchproof, dustproof and waterproof semiconductor sensor to make unlocking easy and secure.

Tech Specs

Model M800
Material Zinc Alloy, ABS
Finish AB/AC
Mortise Center Distance: 68mm; Backset: 60mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AA battery x 4)
Battery Life Time 3,000~4,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Fingerprint Sensor Semiconductor Sensor
Password 6 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi Not Available
Mechanical Key 2 Keys
User Capacity 300 (FP/PW/CARD)
Outside Plate Dimension 76x420x33 mm
Inside Plate Dimension 76x420x33 mm
