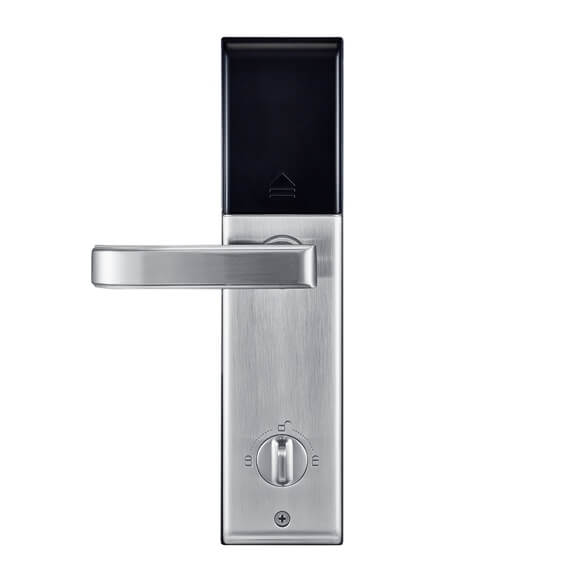

  • M700 SS BACK

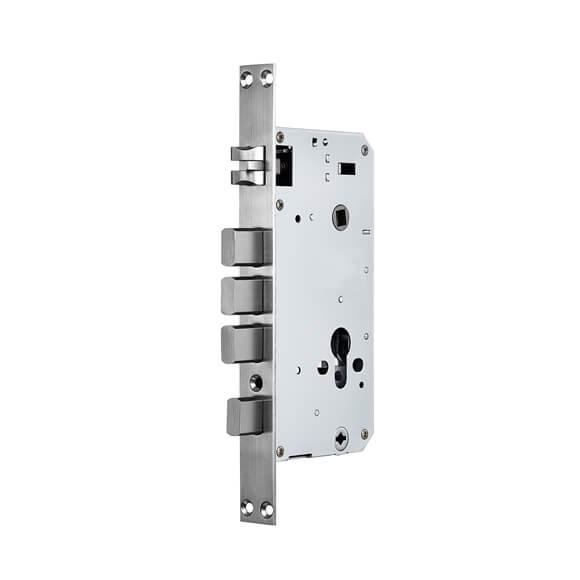

  • 6068 Mortise
  • M700 SS SIDE
  • M700 SS FRONT
  • M700 SS BACK
  • 6068 Mortise

Fingerprint Door Lock M700

  • Home and Office Application
  • Asia and Middle East Style


  • Fingerprint, Password, RF Card Unlocking
  • Up to 900 Different Users
  • Zinc Alloy Material
  • 60-68mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Touch Screen Keypad
  • Reversible Handle
  • Voice Indicator
  • Single/Double Unlocking Mode


Multiple Unlocking Methods

Fingerprint, Password, RF Card can be the unlocking methods for daily usage. However, there are mechanical keys for emergency access even the lock has problems.

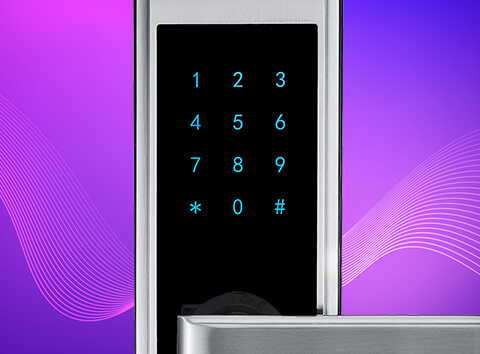

Touch Screen Keypad

The lock is using a high quality touch screen keyboard that help you input the numbers faster. It also makes the lock look nice and fashionable.

Tech Specs

Model M700
Material Zinc Alloy, ABS
Finish SS/GD
Mortise Center Distance: 68mm; Backset: 60mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AA battery x 4)
Battery Life Time 3,000~4,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Fingerprint Sensor Optical Sensor
Password 6 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi Not Available
Mechanical Key 2 Keys
User Capacity 993 (FP/CARD)+13 (PW)
Outside Plate Dimension 76x314x28 mm
Inside Plate Dimension 76x314x28 mm
