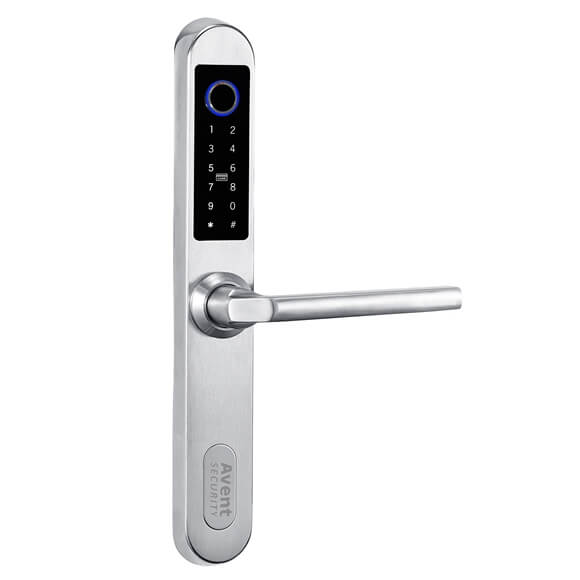

• M301 SS SIDE

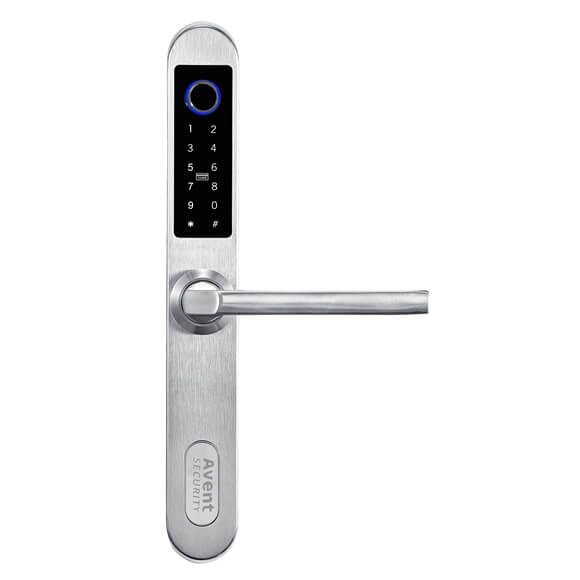

  • M301 SS FRONT
  • M300 SS BACK
  • 3585 Mortise
  • M301 SS SIDE
  • M301 SS FRONT
  • M300 SS BACK
  • 3585 Mortise

Fingerprint Door Lock M301

  • Home and Office Application
  • Euro Style


  • Fingerprint, Password, RF Card Unlocking
  • Up to 300 Different Users
  • Grade 304 Stainless Steel
  • 35-85mm Mortise Lock Body
  • Mechanical Keys for Emergency Access
  • Semiconductor Fingerprint Sensor
  • Voice Indicator
  • Single/Double Unlocking Mode
  • Available with Wi-Fi connection

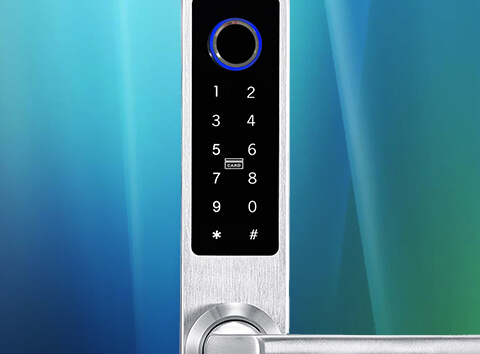

Full Numbers Keypad

The lock comes with a full number keypad which helps you can make your password be more secure.

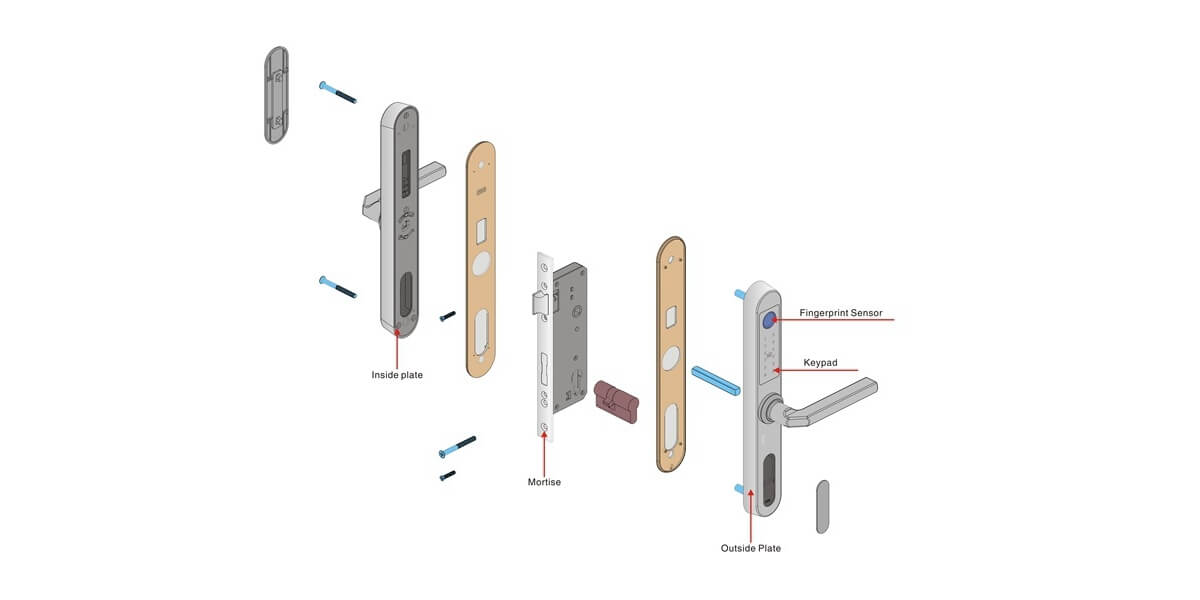

Available to Different Size of Door Frame

There are different kinds of mortises available, like 2885 swing/sliding, 3585 swing/sliding, 4585 swing, and 6085 swing.

Tech Specs

Model M301
Material Stainless Steel 304, ABS
Finish SS/BK
Mortise Center Distance: 85mm; Backset: 35mm
Applicated Door Thickness 40~50mm
Power 6V (Alkaline AAA battery x 4)
Battery Life Time 3,000~4,000 times
Emergency Power Port Micro-USB
Operating Temperature -15°C~55°C
Fingerprint Sensor Semiconductor Sensor
Password 6~10 Digits
Card S50 (13.56MHz)
Bluetooth/Wi-Fi Tuya Wi-Fi
Mechanical Key 2 keys
User Capacity 300 (FP/PW/CARD)
Outside Plate Dimension 40x300x22 mm
Inside Plate Dimension 40x300x22 mm
