Smart Home Wi-Fi Connection
The lock can work with Tuya WiFi so that it can be one of the parts of your smart home solution.
Fingerprint Unlock
Password Unlock
RF Card Unlock
Mechanical Key Unlock
Touch Screen Keypad
Voice Indicator
Random Password Protection
User Management
Reversible Handle
Low Battery Alarm
Emergency Power Support
2 Years Warranty
The lock can work with Tuya WiFi so that it can be one of the parts of your smart home solution.
Our advanced fingerprint technology uses a scratchproof, dustproof and waterproof semiconductor sensor to make unlocking easy and secure.
| Model | M201 |
| Material | Aluminium Alloy, ABS |
| Finish | BK |

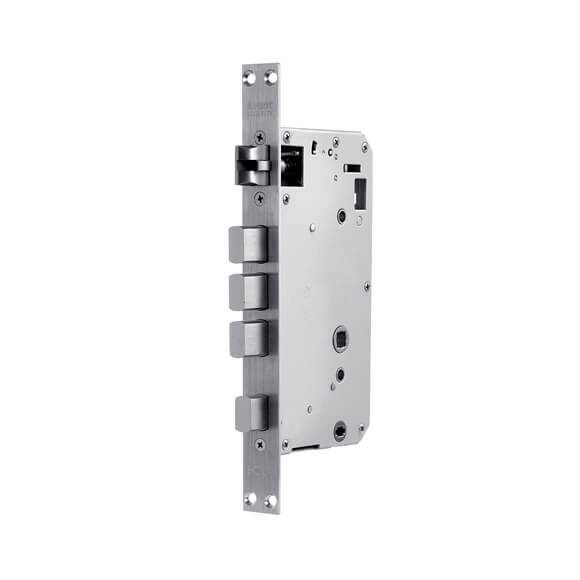

| Mortise | Center Distance: 68mm; Backset: 60mm |
| Applicated Door Thickness | 40~50mm |
| Power | 6V (Alkaline AA battery x 4) |
| Battery Life Time | 3,000~4,000 times |
| Emergency Power Port | Micro-USB |
| Operating Temperature | -15°C~55°C |
| Fingerprint Sensor | Semiconductor Sensor |
| Password | 4~8 Digits |
| Card | S50 (13.56MHz) |
| Bluetooth/Wi-Fi | Tuya Wi-Fi |
| Mechanical Key | 2 Keys |
| User Capacity | 300 (FP/PW/CARD) |

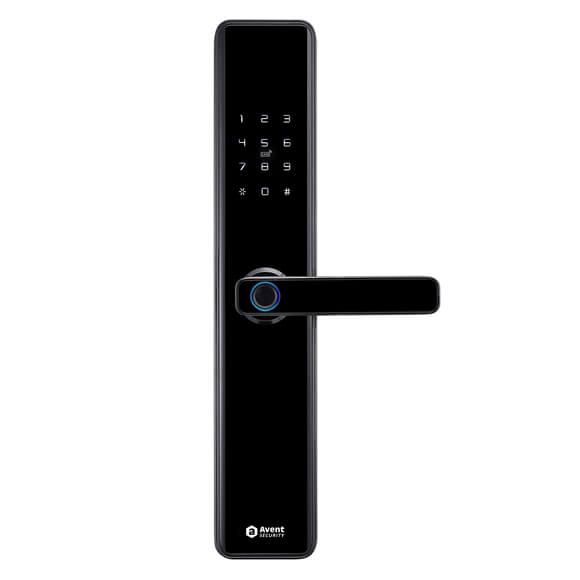

| Outside Plate Dimension | 75x370x24 mm |

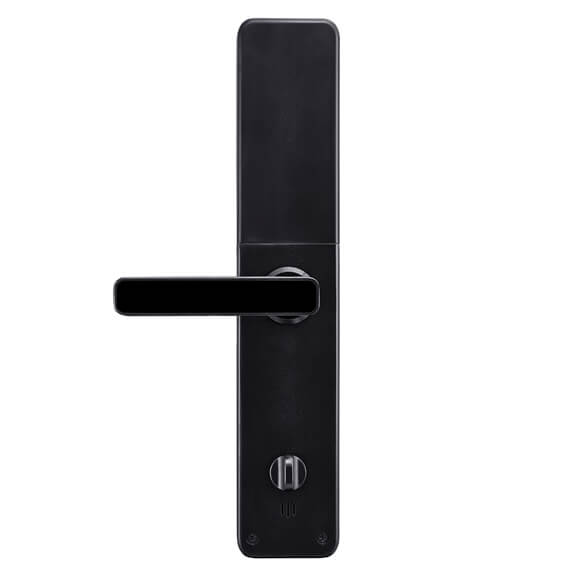

| Inside Plate Dimension | 75x370x24 mm |
